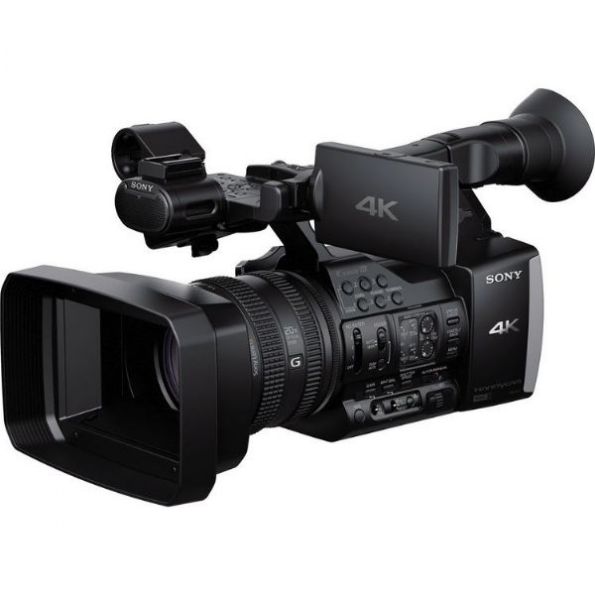

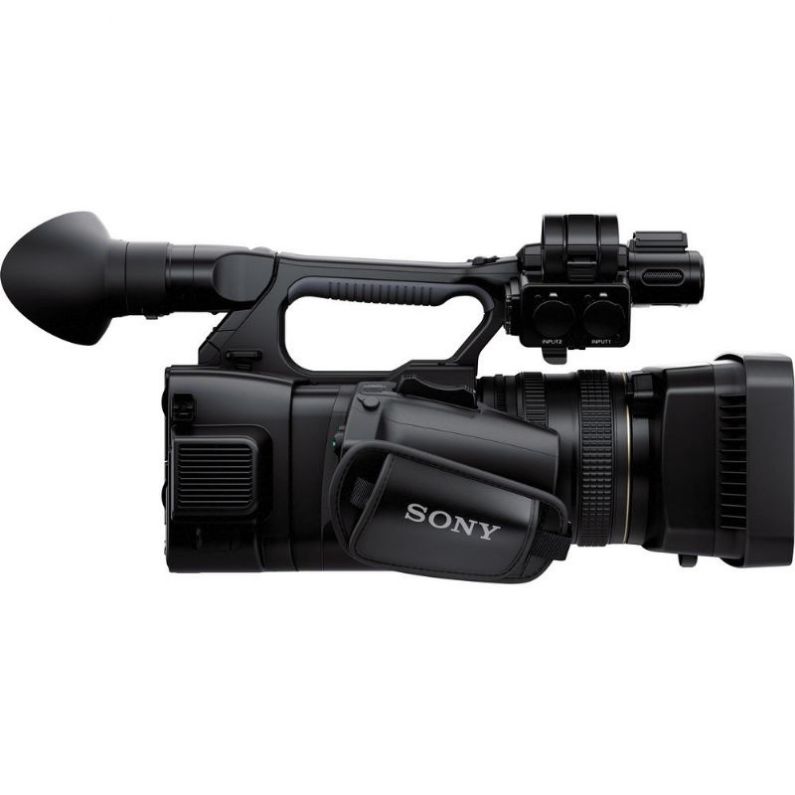

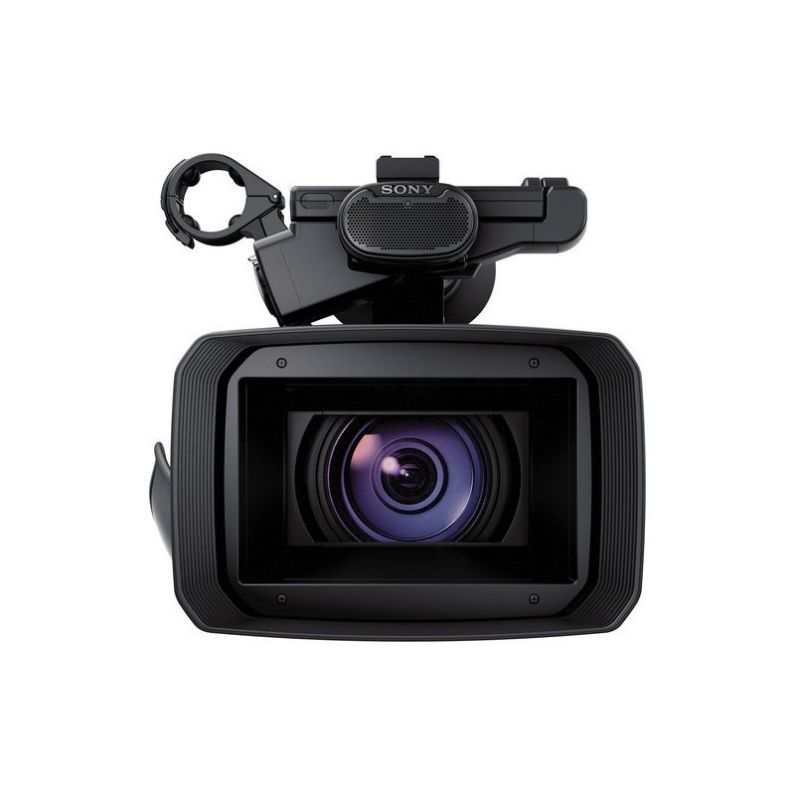

The Sony FDR-AX1 Digital 4K Video Camera Recorder is the first consumer 4K video camera from Sony. They've used the technology developed for their professional video cameras to create a compact, easy-to-operate 4K consumer model that's designed to make 4K video and professional-quality audio available to the masses. The FDR-AX1's powerful image processor is identical to the high-performance processors found in Sony's professional video cameras. By incorporating an image processor that can handle 4K video at 60 fps into a consumer camcorder, everyone will be able to document important family moments, get creative with friends, record sporting events and capture the world around them in lifelike detail. The FDR-AX1's native 3840 x 2160 4K resolution enables you to create movies with four times as much detail and quadruple the image quality of a Full HD 1080p camcorder. Plus, this model features a back-illuminated 8.3MP Exmor R CMOS image sensor that works in concert with the processor so you can record at the maximum frame rate - even when shooting 4K video. This means that even your high-speed action shots and sports videos will be clear, sharp and detailed. In order to provide 4K video recording in a consumer model, Sony designed the FDR-AX1 to support the XAVC-S 4K/HD recording format which is usually reserved for professional applications. However, since the XAVC-S codec will save as an MP4 wrapper, you can still create web-friendly videos that can be easily shared on social media sites like YouTube. Another highlight of the XAVC-S recording format is its ability to record images at 150 Mbps in 4K. In fact, it can record images at 50 Mbps even when you're shooting in Full HD 1920 x1080 resolution. The FDR-AX1 has also adopted a more professional-type of recording media thanks to the inclusion of dual next-generation XQD media card slots. Both XQD card slots support fast 4K/HD writing and reading rates. Plus, you can use the relay recording function to switch between XQD slots and lengthen your recording time. You'll also be able to quickly transfer footage via SuperSpeed USB 3.0 from your XQD cards to your PC by using an optional XQD reader/writer with a USB 3.0 connection. Another feature that makes the FDR-AX1 a professional-class consumer video camera is its audio recording capability. It records 2-channel Linear PCM audio with a built-in high-performance stereo microphone. However, the camera also features dual integrated professional-class XLR audio inputs for connecting external microphones. You'll even be able to mix audio tracks from the internal microphone with the audio recorded from any connected external mics. There are a variety of shot-enhancing functions and manual control options as well. More experienced videographers will be able to take advantage of the independent zoom, focus and iris rings. Plus, the camera's viewfinder and LCD monitor employ Peaking, Zebra and Center Marker functionality for more advanced shot setup and autofocus options. Other image-enhancing features include three ND filters and five unique Paint functions, which will help you achieve a more cinematic aesthetic with your movies. The FDR-AX1 has flexible connectivity options as well. Besides the XLR audio inputs, the camera is equipped with a headphone jack, an HDMI output that will transfer 4K footage to compatible 4K Bravia TVs, a USB 2.0 port for fast data transfers, an analog A/V output, an accessory shoe and more. With the flexible connectivity options, professional-class features, 4K recording capability and ease-of-use, the FDR-AX1 bridges the gap between consumer and professional-class. While experienced videographers will be able to really produce great video and audio with this model, even ambitious beginners will be able to master this camera and capture professional looking, cinematic 4K video with ultra-clear stereo audio. Capture 4K 3840 x 2160p Video at 60 fpsThis model supports 4K 3840 x 2160 resolution. With four times better than Full HD 1080p image quality, you'll be able to capture the finest details at high resolution and produce vibrant, realistic images. Plus, the fast image processor is the same one employed in professional Sony models, making it possible to record 60p movies at the camera's full resolution for smooth playback with no loss in realism - even when panning the camera and shooting moving subjects.Sony G Lens with 20x ZoomThe Sony G Lens is an aspheric lens with special low-dispersion glass. It's specially tuned to capture subtle qualities of definition and color. In addition, the lens offers a broad 20x optical zooming range with a 31.5 - 630mm (35mm equivalent) focal length that enables an expansive range of video expression.1/2.3" Back-Illuminated 8.3MP Exmor R CMOS Image SensorSony's unique Exmor R CMOS sensor has a back-illuminated structure with wiring layers on the back of a photodiode (light receiving element) that dramatically boosts low-light

Sensor	1/2.3" back-illuminated Exmor R CMOS sensor
Pixel Gross	Approx. 18,900,000 pixels
Effective Pixels	Approx. 8,300,000 pixels
Color Filter System	RGB primary color filters
Lens	Sony G Lens
Image Stabilization	Optical SteadyShot image stabilization
Aperture	f/1.6 - f/3.4
Focal Length	4.1 - 82 mm
35mm Equivalent Focal Length	31.5 - 630 mm
Optical Zoom	20x
Filter Diameter	72 mm
Minimum Focus Distance	Wide: Approx. 0.4" (1 cm) Tele: Approx. 31.5" (80 cm)
Aperture Blade	6 blades
ND Filter	Off 1/4 1/16 1/64
Control Rings	Focus ring Iris ring Zoom ring



Recording
Video Signal	UHDTV HDTV
Video Format	XAVC-S format MPEG-4 AVC/H.264
Compatible Formats	XAVC-S: MP4 (4:2:0, 150 Mbps, 4K 3840 x 2160/60p) XAVC-S: MP4 (4:2:0, 150 Mbps, 4K 3840 x 2160/50p) XAVC-S: MP4 (4:2:0, 60 or 100 Mbps, 4K 3840 x 2160/30p) XAVC-S: MP4 (4:2:0, 60 or 100 Mbps, 4K 3840 x 2160/25p) XAVC-S: MP4 (4:2:0, 60 or 100 Mbps, 4K 3840 x 2160/24p) XAVC-S: MP4 (4:2:0, 50 Mbps, HD 1920 x 1080) AVCHD: m2ts (4:2:0, up to 28 Mbps, HD 1920 x 1080)
Media Type	XQD memory card x 2
Video Resolution	4K: 3840 x 2160p at 60 fps (150 Mbps) 4K: 3840 x 2160p at 30 fps (100 Mbps) 4K: 3840 x 2160p at 30 fps (60 Mbps) 4K: 3840 x 2160p at 24 fps (100 Mbps) 4K: 3840 x 2160p at 24 fps (60 Mbps) 4K: 3840 x 2160p at 50 fps (150 Mbps) 4K: 3840 x 2160p at 25 fps (100 Mbps) 4K: 3840 x 2160p at 25 fps (60 Mbps) HD: 1920 x 1080p at 60 fps (50 Mbps) HD: 1920 x 1080p at 30 fps (50 Mbps) HD: 1920 x 1080p at 24 fps (50 Mbps) HD: 1920 x 1080p at 50 fps (50 Mbps) HD: 1920 x 1080p at 25 fps (50 Mbps)
Recording Time	50 min with 64GB XQD card (XAVC-S 3840 x 2160/60p, 150 Mbps) 150 min with 64GB XQD card (XAVC-S 1920 x 1080p/60p, 50 Mbps)
Video Actual (Pixels)	Approx. 8,300,000 pixels
Audio Format	Linear PCM (48 kHz / 16-bit)
Audio Channels	2-channels
Microphone Max Input Level	120 dB SPL
Built-In Microphone	Yes (2-channel stereo microphone)
Built-In Speakers	Yes (monaural speaker)
Microphone Level Control	Yes (2 steps)
Wind Position	Yes (On/Off)



Viewfinder
Type	0.45" (1.14 cm)
Backlight	Yes
Power Mode	Yes



Display
LCD Type	3.5" (8.8 cm) Xtra Fine LCD 3D display
Pixels	1,229,000 pixels
Aspect Ratio	16:9 (wide)
Angle Adjustment	Opening Angle: 180 (max) Turning Angle: 270 (max)
Backlight	Yes (menu)
Coverage	100%
Marker	Yes



Focus Control
Focus System	Contrast AF
AF Modes	Auto Manual (ring)
Focus Area	Full range focus
Push Auto Focus	Yes
Manual Focus Assist	Magnified display for precise manual focus Peaking display



Exposure Control
Metering Modes	Multi-segment
Exposure Compensation	AE level AE speed (menu)
Noise Reduction	Yes
White Balance Modes	Auto One Push Outdoor Indoor Color Temp
WB Shift	Yes
Minimum Illumination	60p: 4 lux (1/30 shutter speed) 50p: 3 lux (1/25 shutter speed)
Auto Iris Control	f/1.6 - f/11
Manual Iris Control	f/1.6 - f/11
Push Auto Iris	Yes
Manual Exposure Assist	Zebra pattern display



Connectivity
Memory Card Slot	XQD x 2 (for XAVC-S) Memory Stick PRO Duo Memory Stick PRO-HG Duo SD/SDHC/SDXC compatible x 1 (for AVCHD) SD/SDHC/SDXC x 1 (utility SD slot)
A/V Outputs	Composite video (RCA) output x 1 (SD) Analog audio L/R (RCA) output x 1 (SD) HDMI output x 1 (HD/4K)
USB Ports	USB 2.0 Hi-Speed (mini-B) x 1 USB 2.0 Hi-Speed Host (mass-storage type-A) x 1
Headphone Jack	Stereo mini-jack x 1
Microphone Input	XLR jacks x 2 (line/mic)
DC Input	Yes
Remote Terminal	Yes
Accessory Shoe	Yes



General
Battery Type	NP-F970
Power Requirements	7.2 V (battery pack) 12.4 V (AC adapter)
Power Consumption	Viewfinder (4K): 14.2 W (30p / 60 Mbps) Viewfinder (HD): 15.4 W (60p / 50 Mbps) LCD (4K): 14.5 W (30p / 60 Mbps) LCD (HD): 15.7 W (60p / 50 Mbps)
Dimensions (WxHxD)	7.44 x 7.6 x 14.25" (189 x 193 x 362 mm) including NP-F970 battery
Weight	5.38 lb (2.44 kg) camera only 6.1 lb (2.77 kg) camera and NP-F970 battery

• Brand New Factory Fresh Import Model
