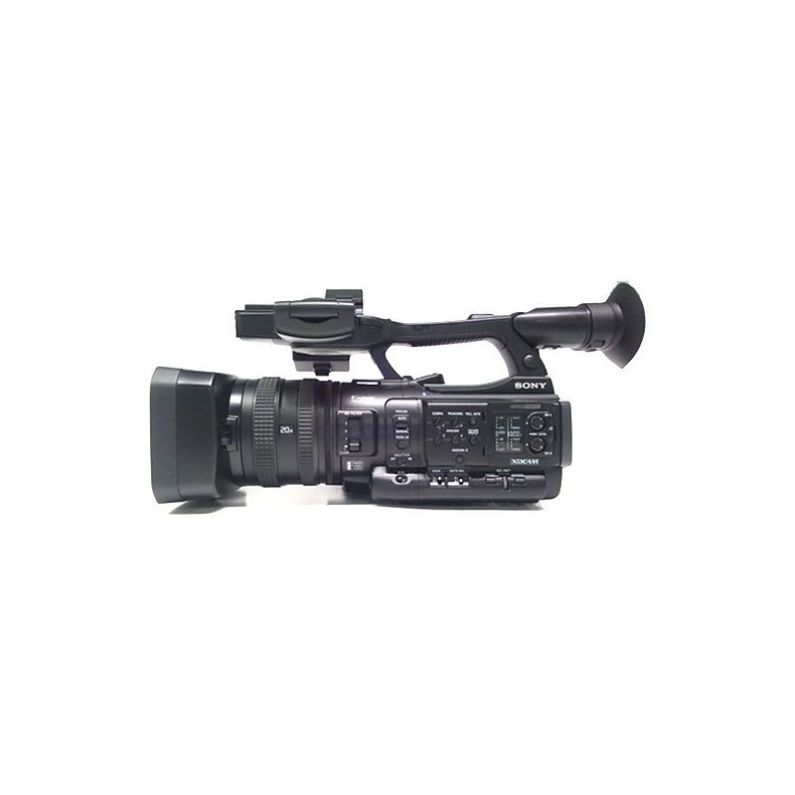

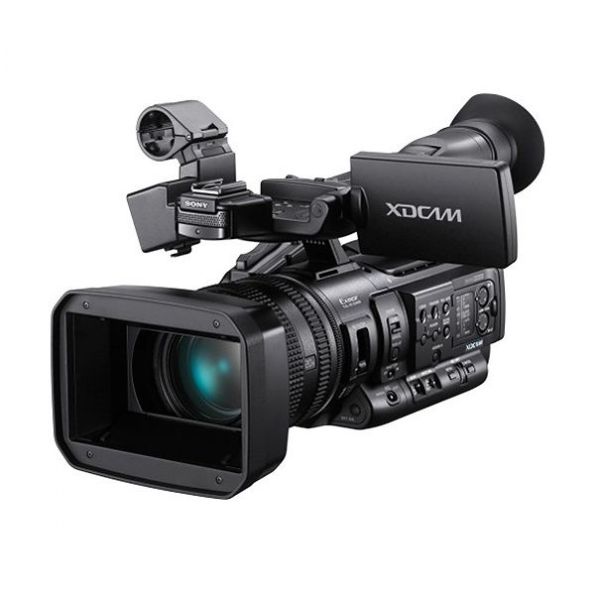

The Sony PMW-160 XDCAM HD422 Camcorder features three 1/3" Exmor CMOS sensors and a 20x power zoom lens. PMW-160 utilizes the XDCAM HD422 format at 50Mbps. The articulated LCD monitor and EVF each feature 480 vertical lines of resolution. The camera also supports Wi-Fi remote operation via a mobile App and the optional CBK-WA01 Wi-Fi Adapter (sold separately). Key Features Three 1/3" sized Full HD Exmor CMOS Sensors Sony Power Zoom Lens with 20x Zoom Ratio Supports XDCAM HD422 Format at 50Mbps Articulated LCD and EVF with 480 Resolution DVCAM for SD Recording and Playback Play and Record UDF and FAT Cards Built-in ND Filters (1/4, 1/16, 1/64) Signal-to-Noise Ratio 54 dB Two SxS Memory Card Slots Wi-Fi Remote Capability with mobile App and CBK-WA01 (sold separately) Lens Hood with Shutter Mechanism

Imaging Device	3 x 1/3" Exmor CMOS
Signal to Noise Ratio	54 dB
Zoom Ratio	20x
35mm Equivalent Focal Length	29.5 - 590mm
ND Filters	OFF, 1/4, 1/16, 1/64
Gain Selection	-3, 0, 3, 6, 9, 12, 18 dB
Sensitivity	F9 (typical) at 2000 lx, 89.9% reflectance
Slow Shutter	2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation
File Format	UDF, FAT
Video Recording Format	UDF Mode (HD Recording) MPEG HD422 (MPEG-2 422P@HL): CBR, 50 Mb/s MPEG HD420 (1440x1080, MPEG-2 MP@HL): HQ mode (VBR, maximum bit rate: 35 Mb/s) SP mode (CBR, 25 Mb/s) - playback only LP mode (VBR, maximum bit rate: 18 Mb/s) - playback only UDF Mode (SD Recording)DVCAM (CBR, 25 Mb/s) FAT Mode (HD Recording) MPEG HD420 (1920x1080, MPEG-2 MP@HL): HQ mode (VBR, maximum bit rate: 35 Mb/s) SP mode (CBR, 25 Mb/s) Fat Mode (SD Recording) DVCAM (CBR, 25 Mb/s)
Frame Rates	XDCAM HD422 at 50Mbps: 1080/59.94i, 1080/29.29p, 1080/23.98p, 1080/50p, 1080/25p 720/59.94p, 720/29.97p, 720/23.98p, 720/50p, 720/25p
Audio Recording	UDF Mode (HD Recording) MPEG HD422 (MPEG-2 422P@HL): 4 channels, 48KHz, 24-bit LPCM MPEG HD420 (1440x1080, MPEG-2 MP@HL): 4 channels, 48KHz, 16-bit LPCM UDF Mode (SD Recording)DVCAM: 4 ch/16 bits/48 kHz FAT Mode (HD Recording) MPEG HD420 (1920x1080, MPEG-2 MP@HL): 2 channels, 48KHz, 16-bit LPCM FAT Mode (SD Recording) DVCAM: 2 channels, 48 KHz, 16-bit LPCM
Recording/Playback Time	UDF Mode (HD Recording) 50 Mb/s MPEG HD422 (MPEG-2 422P@HL): Approx. 120 min with SBS-64G1A (64 GB) memory card Approx. 60 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 30 min with SBP-16 (16 GB) memory card 35 Mb/s VBR, HQ Mode MPEG HD420 (1440x1080, MPEG-2 MP@HL): Approx. 180 min with SBS-64G1A (64 GB) memory card Approx. 90 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 45 min with SBP-16 (16 GB) memory card UDF Mode (SD Recording) 25 Mb/s DVCAM Approx. 220 min with SBS-64G1A (64 GB) memory card Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 55 min with SBP-16 (16 GB) memory card FAT Mode (HD Recording) 35 Mb/s VBR, HQ Mode - MPEG HD420 (MPEG-2 MP@HL): Approx. 200 min with SBS-64G1A (64 GB) memory card Approx. 100 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 50 min with SBP-16 (16 GB) memory card 25 Mb/s CBR, SP Mode - MPEG HD 420 (MPEG-2 MP@HL-14): Approx. 280 min with SBS-64G1A (64 GB) memory card Approx. 140 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 70 min with SBP-16 (16 GB) memory card Fat Mode (SD Recording) 25 Mb/s DVCAM Approx. 220 min with SBS-64G1A (64 GB) memory card Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 55 min with SBP-16 (16 GB) memory card
Recording Media	2 x SxS Express 34 Cards
Inputs	2 x XLR-type 3-pin (female): line, mic, mic +48 V selectable 1 x BNC (switchable to Video Out), 1.0 Vp-p, 75? 1 x BNC, Timecode In (switchable to TC Out), SMPTE-12M-2008, 0.5-1.8 Vp-p, 10k?)
Outputs	1 x A/V out jack: 10 pin connector 1 x BNC, (switchable to Genlock In), HD-Y / Composite switchable, 1.0 Vp-p, 75? 1 x BNC, HD/SD switchable, SMPTE-292M/259M 1 x BNC, Timecode Out (switchable to TC In), SMPTE-12M-2008, 1.0 Vp-p, 10k?
USB 2.0	1 x mini-B
IEEE-1394	1 x 4-pin, HDV (HDV 1080i) / DV input/output, S400
Earphone	1 x Mini-jack (stereo)
Built-in Speaker	Monaural, 250 mW
Viewfinder	Electric Viewfinder (EVF) Approx 1.2 million pixels 852 x 3 x 480 (HxRGBxV)
LCD Monitor	3.5" (8.9 cm) color LCD 852 x 3 x 480 (HxRGBxV) Aspect Ratio: 16:9
Built-In Microphone	Omni-directional stereo electret condenser
Wi-Fi	Yes
Humidity	10 to 90% (relative humidity)
Storage Temperature	-4 to 140&def;F (-20 to 60F)
Operating Temperature	32 to 104F (0 to 40C)
Power Requirements	12 VDC
Dimensions (WxHxD)	6.77 x 6.46 x 12.83" (17.2 x 16.4 x 32.6 cm) (without protrusions)

• Brand New Factory Fresh Import Model
