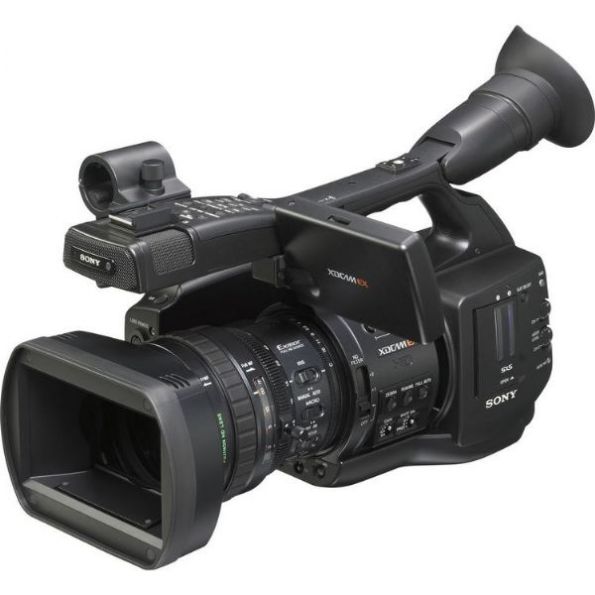

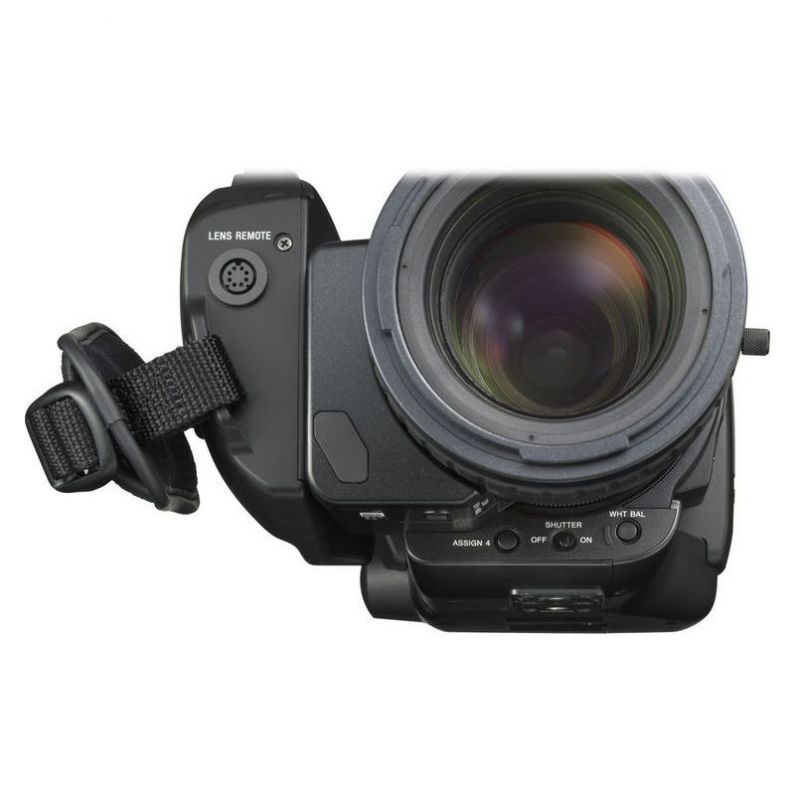

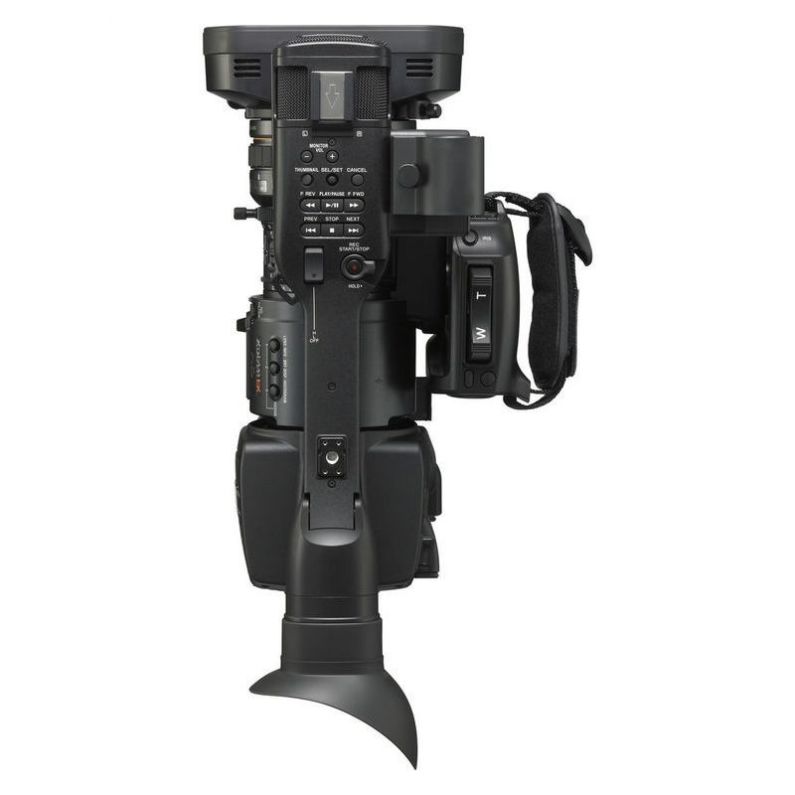

Sony's PMW-EX1R XDCAM EX HD Camcorder is the impressive successor to the popular PMW-EX1. While retaining everything that was right about the previous camera, Sony has listened to its professional users and taken several steps forward, not only improving ergonomics and convenience, but bringing a whole new set of features to the world's only full HD compact camcorder. Like its predecessor, the PMW-EX1R's core is its three 1/2"-type CMOS sensors and 14x Fujinon zoom lens. This heavyweight imaging combo captures full 1920 x 1080 hi-def images to solid state SxS PRO memory cards (sold separately) at multiple bit rates, resolutions and frame rates. Whether you're shooting weddings, documentaries or feature films, there's a frame rate and resolution for you--from 60fps and native 23.98p recording at 720p, to 1fps at 1080i. SxS PRO cards of up to 64GB in capacity can be used. For 64GB cards, the camera will require software version 1.15 or greater installed from Sony's website. The way to install it is by downloading the version to a computer, connecting the camera to the computer by USB cable, and selecting the upgrade option in "Others" tab of the camera's menu table. If your computer has an SxS slot, you can just transfer the downloaded file onto the SxS card and then pop the card into the camera to transfer the download, which in this case also you would do through the "Others" menu. 64GB cards can record 200 minutes in HQ mode and 280 in SP mode. But along with its already proven imaging abilities and professional workflow, the PMW-EX1R expands its usability by offering DVCAM SD recording, XDCAM HD compatibility, and HDMI output. That means no more time-consuming downconverting or transcoding to work in different formats or with different recording and playback devices. Other new features add even more convenience and flexibility, including a high-resolution 1.23MP viewfinder, Cache Record, one-click S&Q button, auto iris, and even image inversion for flipping the image while shooting with a 35mm adapter. Make no mistake: the Sony PMW-EX1R is the first HD compact camcorder that truly does have it all. Other Features Built-in ND filter wheel: 1: Clear, 2: 1/8ND, 3: 1/64ND Selectable gain: -3, 0, 3, 6, 9, 12, 18 dB High-speed picture search: x4, x15  Freeze Mix function  Skin-tone Detail control Low-key saturation

Image Device

3-chip 1/2"-type Exmor CMOS

Lens

Fujinon 14x Optical Zoom with Image Stabilization
5.8-81.2mm, f/1.9

Signal-to-Noise Ratio

54dB

Horizontal Resolution

1000 Lines or more

Sensitivity

2000 lux, 89.9% Reflectance, f/10 (Typical, 1920 x 1080 59.94i)

Minimum Illumination

0.14 lux (Typical)
1920 x 1080/59.94i mode, f/1.9, +18 dB gain, with 64-Frame Accumulation

Built-in Filters

OFF: Clear, 1: 1/8 ND, 2: 1/64 ND

LCD Monitor

3.5", 16:9 Aspect Ratio, 921,000 Effective Pixels

Viewfinder

0.54" Color/B&W, 16:9 Aspect Ratio, 1,226,000 Effective Pixels

Scan Matching

Yes

Memory Card Slot

ExpressCard/34

Shutter Speed Range

1/60-1/2000 sec + ECS
Slow Shutter (SLS): 2, 3, 4, 5, 6, 7, 8, 16, 32 and 64-frame accumulation

Gain Selection

-3, 0, 3, 6, 9, 12, 18dB, AGC

Maximum Recording Time

32GB
HQ: 100 min
SP/SD: 140 min
16GB
HQ: 50 min
SP/SD: 70 min
8GB
HQ: 25 min
SP/SD: 35 min

Signal System

NTSC area:
HD HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 29.97p, 23.98p, 1280 x 720/59.94p, 29.97p, 23.98p (native)
HD SP mode: 1440 x 1080/59.94i
SD mode: 720 x 480/59.94i, 29.97p

Audio Dynamic Range

90dB

Audio Signal Format

Linear PCM (2ch, 16-bit, 48-kHz)

Audio Frequency Response

20Hz to 20kHz, +3dB/-3dB

Input and Output Connectors

Component: MiniD (x1 Output)
Composite: Phono via A/V Multi-Connector (x1 Output)
HD/SD-SDI: BNC (x1 Output)
HDMI: A-type (x1 Output)
Audio: XLR 3-Pin Female (x2 Input)
Audio: Phono via A/V Multi-Connector (x2 Output)
Speaker: Monaural (x1 Output) i.LINK: FireWire 4-Pin (x1 Input/Output)
USB: Mini-B
Headphone: Stereo Mini Jack (x1 Output)

Power Requirements

12VDC

Power Consumption

12.5W

Operating Temperature

32-104deg.F (0-40deg.C)

Dimensions (W x H x D)

7.13 x 7.9 x 12.25" (18.1 x 20.0 x 31.1 cm)

Weight

5.25 lbs (2.4 kg)

• Brand New Factory Fresh Import Model
